Very Limited Qtys
This shipment is selling out very quickly, grab your Kilo WT now
If your size has sold out - please join our newsletter Click HERE for updates on future shipments

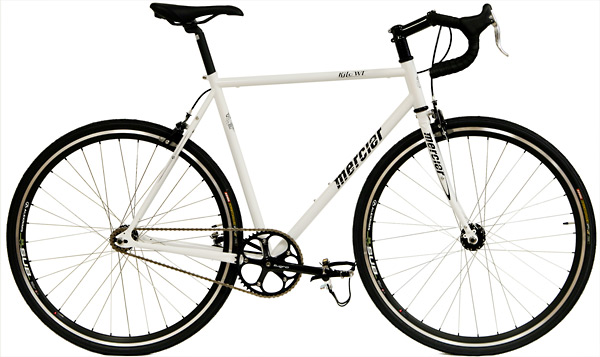

Mercier 2010 Kilo WT Gallery of PearlWhite | RevolutionRed Gallery | EmeraldGreen Gallery
Think of this as a Kilo TT on steroids, a Kilo TT turbo-charged, sport SUV. With this Kilo WT you know Wide Tires Fit up to 1.75"x29 and 700x45c. With front and rear braze-ons, you can rack it up and really haul.
Customers tell us this is one of the best winter-bikes you can possibly ride. Put on some 1.75" x 29er tires and run over just about anything, anytime and anywhere.
Please Compare to Bianchi San Jose and Surly SteamRoller at $720 to 800+.
Direct comparison to any high quality wide-tired singlespeed bike will showcase the fantastic frame quality. At $439 delivered, there is no better value in it's class
You'll have to look hard to try to find a bike with specs as good as the WT for even double the price.
Extremely limited shipment of these
fun, durable and versatile track bikes
We
are blowing these out for Mercier as a special promotional deal
Custom
Butted, Multishaped and Tapered Reynolds 520 Chromoly Steel frames.
Custom flat crown Track fork with "Wide Tires Fit" custom lugged crown. (Fits up to 45x700c tires/ 1.75"x29")
WT Upgrades from the regular Kilo TT:
Pro-grade Forged Aluminum Sugino Track crankset (130 BCD)
Custom Alex SUB 30mm V-Aero section wheelset - Wheelset alone is worth $350 to $400
Precision Sealed Bearing Hi-flange Hubs
Tektro Road levers + R556 front/rear brake - Valued at $80
Custom paint colors Gallery of PearlWhite | RevolutionRed Gallery | EmeraldGreen Gallery
Fast rolling, wide and comfortable, Kenda tires
VERSATILE FEATURES
Drilled for
front and rear brakes. Bonus front/rear brakes and levers included
Rack
Braze-ons and Rear Eyelets. Add a rear rack =
great commuter
FLIP
FLOP
rear hub. Fixed and freewheel sides. We highly recommend the installation of front and rear brakes (included). If you want to ride
fixed-gear, just flip the rear wheel and add your own
fixed cog and lockring.
Most riders fit the size they clear the standover by at least 1 to 1.5
inches
| Frame |
Stem Reach / Rise |
Bar (cm) |
Crank (mm) |
| 49cm |
90mm / 17 deg. |
41cm |
165mm |
| 53cm |
110mm / 17 deg. |
41cm |
165mm |
| 56cm |
110mm / 17 deg. |
41cm |
165mm |
| 59cm |
110mm / 17 deg. |
41cm |
165mm |
| 62cm |
110mm / 17 deg. |
41cm |
170mm |
GEOMETRY / MEASUREMENTS
|
| Frame Size >>> |
49cm |
53cm |
56cm |
59cm |
62cm |
ST (C-T):
Inches / mm
|
19.3 / 490.0 |
20.9 / 530.0 |
22.0 / 560.0 |
23.2 / 590.0 |
24.4 / 620.0 |
TT (C-C):
Inches / mm
|
20.7 / 526.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
TT (Effec.):
Inches / mm
|
20.8 / 529.5 |
21.5 / 547.0 |
22.4 / 568.0 |
23.1 / 587.0 |
23.9 / 608.0 |
HT Angle:
degrees |
72.5° |
73.0° |
73.5° |
74.0° |
74.0° |
HT Length:
degrees |
3.3 / 83.0 |
4.3 / 109.0 |
5.4 / 136.0 |
6.4 / 163.0 |
7.7 / 196.0 |
ST Angle:
degrees |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
BB Drop:
Inches / mm |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
2.8 / 70.0 |
CS Length:
Inches / mm |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
15.7 / 398.0 |
Wheel Base:
Inches / mm |
38.0 / 965.7 |
38.1 / 966.6 |
38.5 / 978.6 |
38.9 / 987.6 |
39.7 / 1009.1 |
S.O. Height*:
Inches / mm |
29.5 / 748.5 |
30.7 / 780.5 |
31.8 / 807.9 |
32.9 / 835.2 |
34.1 / 865.3 |
Fork Length:
Inches / mm |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
14.8 / 375.0 |
Fork Rake:
Inches /
mm |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
1.5 / 38.0 |
| *Measurements from bikes with 700c x 28 tire taken from to middle of the top tube to the ground |
Most riders fit the size they clear the standover by at least 1 to 1.5
inches
If you are between sizes, keep in mind the smaller one will have lower handlebars and more agile handling. The larger one will have higher handlebars but less straddle room. Your personal preferences will determine your size. The final choice is up to you.
Available - Limited Qtys
These shipments sell out very quickly. ORDER WHEN YOU CAN
NOTE: PLEASE TIGHTEN YOUR LOCKRINGS, CRANKS, PEDALS ETC BEFORE AND AFTER EVERY RIDE. Stripped threads, cranks, pedals etc are due to those parts not being tightened enough by the rider and are not covered by warranty
An interesting track bike fact:
The Kilometre TT or 'Kilo' is three and a half laps long and is considered by many to be the most painful event in track racing. From a held start, the rider will sprint at full effort for a little over a minute.
