Frame

New Semi-Compact Geometry, High Modulus CarbonFiber Frame with replaceable derailleur hanger and 2xH2O brazeons

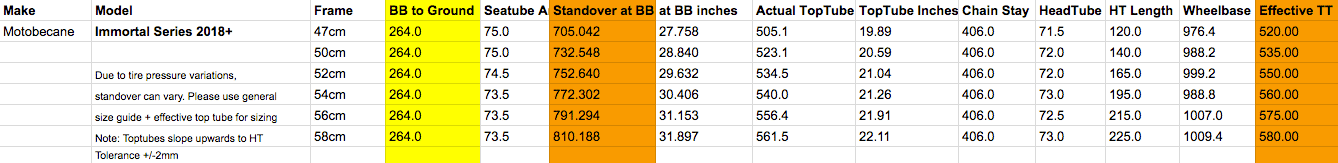

HT lengths 47/50/52/54/56/58/60/62/64CM = 115/130/140/150/170/190/210/230/250mm

Fork

700C CARBON ( UD WEAVE ) FORK, STEERER: ALLOY ( 1-1/8" to 1.5" Taper ) CROWN:56mm, ALLOY CROWN AND DROPOUT BONDED CARBON STRAIGHT BLADE, OFFSET:45mm

Headset

Threadless ACB Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ) W/TOP CAP W/15 mm Cone Spacer / Standard 15mm top cover (H2166B) ( 28.6x42/52.1x39.78mm)

Derailleurs

SHIMANO FRONT, FD-R7000-L, 105, FOR REAR 11-SPEED, DOWN-SWING, 34.9MM BAND
SHIMANO REAR, RD-R7000, 105, GS 11-SPEED, TOP NORMAL SHADOW DESIGN

Shifters

SHIMANO SHIFT/BRAKE LEVER, ST-R7000,105, 22-SPEED

Brakes

TEKTRO R540 BLACK w/P420 ALLOY CARTRIDGE SHOE Reach:49mm

Rims/Hubs/Spokes

RIMS AERO Section WEINMANN DP18 ALLOY 700C BLACK W/CNC, 32H, W/FV
SPOKE 14Gx64 PCS STAINLESS XD-BLACK W/BRASS NIPPLE (14mm)
F/HUB JTECH ALLOY HUB 32H , LOOSE BALL W/ALLOY QR , BLACK
R/HUB JTECH 11S ALLOY HUB 32H. LOOSE BALL ,OL:130MM D:42.4mm W/ALLOY QR

Crank/BB

FSA Gossamer Compact 50x34T HG C-Ring, ALLOY BLK ANOD. Crank 170/172.5/175mm for 47-50 / 52-54 / 56-58CM / FSA BB-6200 Road MegaExo Bottom Bracket-Ø24 Stainless bearing / English threading : 68mm width (BSC-1.37" X 24T)

Cassette/Chain

SHIMANO CS-HG70011, 11-SPEED, 11-13-15-17-19-21-23-25-27-30-34T / KMC X11 NARROW CN 1/2"x11/128"x108L.W/HOLLOW PIN

Saddle

Racing Velo

Seatpost

RITCHEY 2BOLT, 6061 ALLOY, 31.6 X 350MM

Handlebars/Stem

RITCHEY STEM COMP 4AXIS 84/6D (C:31.8) - 28.6 ALLOY(6061), EXT:(-6°) 90/100/110mm FOR 47-50 / 52-54 / 56-58CM, BB BLK / RITCHEY BIOMAX ROAD BAR ALLOY(6061) D.B. BUTTED W/TUNNEL BUILT IN TYPE B/CENTER:31.8mm 400/420/440mm FOR 47-50 / 52-54 / 56-58CM ,D/R:130/82mm, BB BLK

Pedals

WELLGO ALLOY SIL BODY/ALLOY SIL CAGE, W/9/16", BORON-AXLE

Tires CONTINENTAL Ultra Sport II 700x25C ( 25x622 ) BLK TREAD BLK S/W 180TPI x 3, WIRE
Color (as shown)
Sizes see pull down

Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. View: His video HERE. How much Assembly? Click For: Sample Assembly instructions and videos CLICK for: Special price on the full Video DVD/CD and Folding Mini ToolKit If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks.
