Frame |

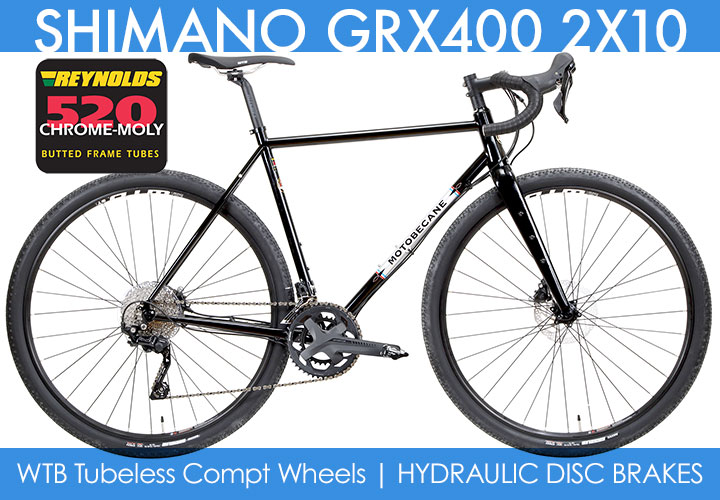

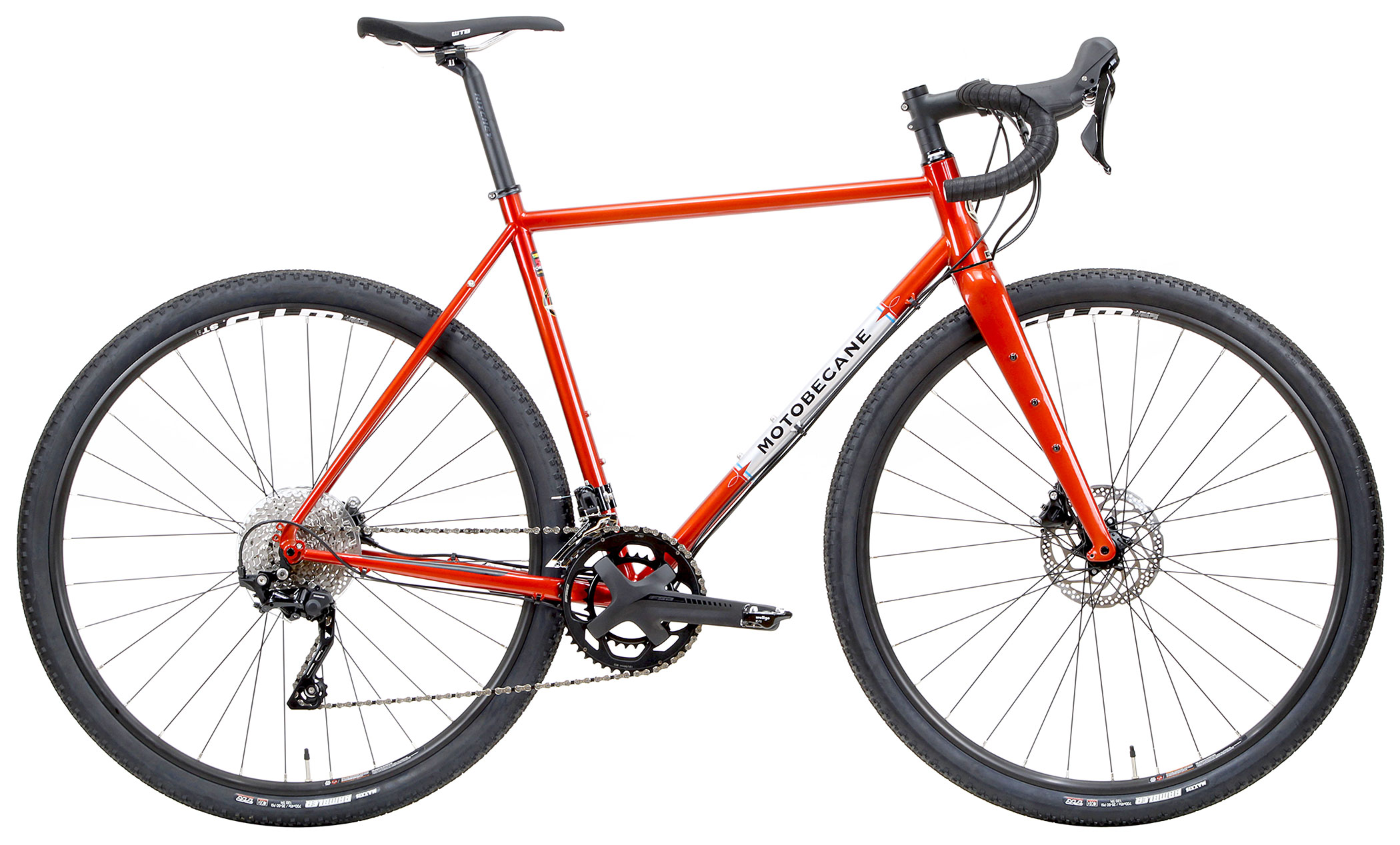

Gravel Bike Disc Brake 700C Butted / Multi-shaped Advanced Reynolds 520 Steel,
2xH2O mounts, Wide Tires Fit, 68mm threaded BB Shell, Headtube UPPER 1-1/8"/LOWER 1.5" TAPER L: 50/53/55/58/61CM=115/130/140/175/190mm, DROPOUTS(DO) Forged VERTICAL, W/FLAT DISC MOUNT . O.L.N: (142MM THRU-AXLE Equipped) Rear rack brazeons. |
Fork |
CARBON GRAVEL FORK ( UD WEAVE ) BLADE 700C, Steerer: CARBON 1-1/8" to 1.5" Taper, w/FLAT DISC MOUNT w/EYELET, OFFSET: 48mm, 3 Bolt Trifecta BRAZE-ONS, ( MAX TIRE : 700x50C ) |
Crankset |
FSA OMEGA, 46-30T, 170/172.5/175mm for 50-53/ 55 /58-61CM |
Bottom
Bracket |
FSA TH-BB4000 |
Pedals |
WELLGO RC-713 ALLOY ROAD PEDAL W/9/16" CNC CRMO AXLE W/98A |
Front
Derailleur |
SHIMANO FD-RX400, GRX, FOR REAR 10-SPEED, DOWN-SWING, DOWN-PULL/a |
Rear
Derailleur |
SHIMANO RD-RX400, GRX, 10-SPEED, TOP NORMAL, SHADOW PLUS DESIGN |
Shifters |
SHIMANO ST-RX400 for Hydraulic Disc 2X10 |
Cassette/Freewheel |
SHIMANO CASSETTE, CS-HG50-10, 10-SPEED, 11-13-15-17-19-21-24-28-32-36T |
Chain |
KMC X10 SUPER NARROW 1/2"x11/128"x114L. INCLUDING CL559R NP LINK |
Wheelset |
RIM TAPES: WTB TCS 2.0 11mm Rim Strip, 29" Red
RIMS WTB ST i23 TCS 2.0 29"/700c, 32 hole drilling, Disc Only, Black Anodized; PV drilled, Pinned Joint, SPOKE 14Gx64 PCS S.S. XD BLACK W/14MM BRASS NIPPLE
F/HUB SHIMANO FRONT HUB, HB-RS470, CENTER LOCK DISC 32H, FOR 12MM THRU TYPE AXLE:100MM, F/HUB ThruAXLE JTECH QR264F FRONT 12mm THROUGH Axle w/QR, ANODIZED BLACK, L: M12xP1.5x120mm
R/HUB SHIMANO FREEHUB, FH-MT400, CENTER LOCK DISC 8-11-SPEED FOR 12MM THRU AXLE, 32H, 142MM, R/HUB ThruAXLE JTECH QR269R REAR 12mm THROUGH Axle w/QR, ANODIZED BLACK, L: M12xP1.75x174mm |
Tires |
MAXXIS Rambler 700x45C 120 tpi EXO/TR, FOLDABLE, Tubeless Compatible (see FAQ*) |
Brakes |
F/ SHIMANO HYDRAULIC DISC GRX, ST-RX400(L), BR-RX400(F), 160MM ROTOR, RESIN PAD, R/ SHIMANO HYDRAULIC DISC GRX, ST-RX400(R), BR-RX400(R), FOR 25MM MNT, RESIN PAD, ROTOR FOR DISC BRAKE, SM-RT60, S 160MM, W/LOCK RING |
Handlebar |
RITCHEY ROAD COMP BUTANO V2 Internal routing, Alloy 6061 D.B. BUTTED W/TUNNEL BUILT IN TYPE B/CENTER: 31.8mm 400/420/440mm FOR 50-53/ 55 /58-61CM, D/R:115/73mm, Flare Angle: 18° BB BLK |
Stem/ Headset |
RITCHEY COMP 4-AXIS-44 1-1/4" 84/6D ALLOY 3D Forged 6061 / SS Bolts TIOGA-OS. EXT: (-6°) 70/80/90mm FOR 50-53/55 /58-61CM, C/S:31.8/28.6x42mm, BB BLK |
Tape/Grip |
Motobecane Black Gel
EVA Synthetic Cork |
Saddle |
WTB SL8, Nylon Fiber Base, CroMoly Rail, Microfiber Cover, DNA Super Light Padding |
Seat
Post |
RITCHEY COMP 2B, 6061 ALLOY W/BB BLK HEAD, 27.2 X 350MM |
Seat
Clamp | Aluminum with bolt |
Sizes |
see pull down |
Colors |
As Shown |
Our
low price is $1299.95 Compare at $2800+
This
price INCLUDES Ground Ship to 48 States
Bikes come up to 90 percent assembled. How much Assembly? CLICK
HERE for sample assembly instructions and videos
CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit |
