Specs | | Geometry Sizing Chart

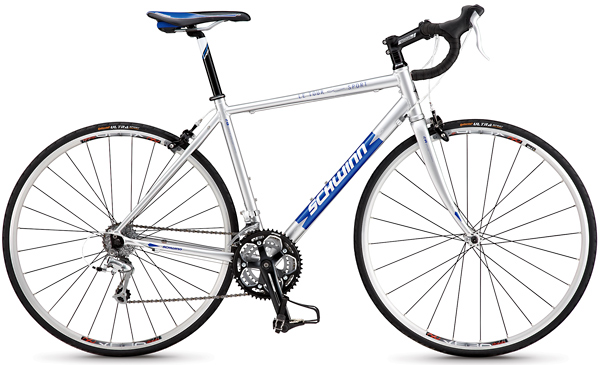

NOTE: equipped with Kenda Kriterium 700x25c 60TPI casing Wire bead 125PSI tires instead of the Continental shown in pics
This
bike comes 90%
assembled. If you don't feel confident working on your bike, we suggest
you take it to a local bike shop for final assembly
& safety checks. How much Assembly? CLICK
HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding
Mini ToolKit |
|||||||||||||||||||||||||||||||||||||
|
FACTORY DIRECT SALE PRICE $499.95 (List
$899) THANK THE GEOMETRY: Engineered for maximum comfort with a frame and fork featuring N'Litened Aluminum with proven Schwinn Bio-Tuned ergonomic geometry. Shimano Tiagra/Sora drivetrain with an FSA Vero compact triple crankset provide hassle-free easy to use shifting. Schwinn Road-Tuned handlebar, stem, and saddle GEARED FOR UPS: With a triple chainring and 27 gears total, this bike is primed to conquer lots of steep hills. Why is the Price So Low?
Best
way to pick size; get a frame you can clear
standover by at least 1 inch |
|
Frame |
Schwinn N'Litened Aluminum with Bio Tuned Ergonomic geometry and replaceable derailleur hanger |
|
Fork |
Schwinn N'Litened Black Label Carbon with forged dropouts |
|
Derailleurs |
Shimano Tiagra rear / Sora front, for 9 speed |
|
Shifters |
Shimano Sora STI |
|
Brake Calipers / Levers |
Tektro R316, Forged Polished Aluminum Dual-Pivot Calipers / Shimano Sora STI |
|
Hubs |
Xero Shawla 20 hole front and 24 hole rear w/QR, 14 G stainless 3 cross |
|
Rims |
Xero Shawla 220 wheel set with double wall rim 20 hole front and 24 hole rear |
|
Crank |
FSA Vero Compact Crank triple, 50/39/30T, 2 piece design/ FSA sq taper cartridge |
|
Cassette/Chain |
SRAM PG950, 9 speed 12-26T / Narrow 9spd |
|
Saddle |
Schwinn Bio-Tuned with Two-tone cover |
|
Seatpost |
Alloy Micro-adjust |
| Stem | Road Tuned Threadless, 1.125 Steerer |
|
Handlebars |
Road Tuned 6000 series alloy ergonomic drop bar, Oversize 31.8mm |
|
Pedals |
Standard road with toe clip and strap |
| Tires/Tubes | Kenda Kriterium 700x25c 60TPI casing Wire bead 125PSI tires instead of the Continental shown in pics / Presta valve tubes |
| Color | As shown |
| Sizes | S, M, L, XL, XLRG Geometry Sizing Chart |
|
This
bike comes approx.90%
assembled |
|
