2016 Disc Brake Full Suspension 29er Mountain Bikes on Sale
Aluminum Full Suspension 29er Mountain Bikes
DiamondBack Recoil 29
Click to see enlarged photo

2016 Disc Brake Full Suspension 29er Mountain Bikes on Sale Aluminum Full Suspension 29er Mountain Bikes DiamondBack Recoil 29 Windsor TrailFS 29Comp Full Suspension Mountain Bikes
Your Size Sold Out?
Check the

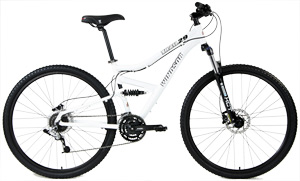

2017 Windsor TrailFS 29Comp
with Hydraulic Disc Brakes Click HERE

Click For: Sizing Guide | Specs | Geometry
Note: On all Diamondback bikes, no tools are included. The manuals mistakenly say some tools are included and they are not
Bikes can be easily assembled with simple tools. Even an Eleven year old assembled their own bike Click Here

IMPORTANT: READ THIS PRIOR TO ORDERING

The Deal: Bikes are available for FREE Ship 48. Warning: At the special Price, sizes sell out fast. Order now for the best price and selection. The price may be $100+ more later this year.

The Process: When you order, your card will be billed for the full amount. You will then get an automatic email reply by the next business day. For example a Friday order will get an email on Monday. Weekends/Holidays are not counted as "days".

Your Shipping Address: Please ensure your shipping address is correct when you place your order. Last minute address changes will incur delays and/or extra costs. Your shipping address can be changed on the 3rd page of the checkout process by clicking on "change" beside the address.

The email contains a tracking number which will NOT show movement until UPS updates the tracking
After the bike ships, it will take 5 to 7 days to arrive via Ground Shipping (Not including weekends/holidays)

Shimano 24 Speed 29er
LongTravel Forks, Disc Brakes, ALU Frame, Full Suspension Mountain Bikes

2016 DiamondBack
Recoil 29
HOT WEB SALE
Sale not applicable to previous orders
SALE $499.95
(Compare $900-1000)
Ships Signature Req'd for your protection
Advanced Suspension
Powerful Disc Brakes
LongTravel Suspension
Light/Strong AL Frames
Shimano Shifters+Derailleurs

Save up to 60% Off List Prices
Buy Factory Direct from Bikesdirect

Compare to Trek or Specialized
Select your size/color below
Go thru Checkout for stock status
*Stock status shown prior to payment
FREE Ship 48
Sizes/Colors

Your Size Sold Out? Check the 2017 Windsor TrailFS 29Comp with Hydraulic Disc Brakes Click HERE

Click for Sizing Tips
We accept Visa/MC/Disc/Amex. PayPal is optional
Price Includes Ground Shipping
to 48 United States
(5 to 7 Day Delivery) (AK/PR/HI addtl charges)
(Email us for Delivery to PO Box/APO/FPO)
Share this: | Twitter this: | More: Bookmark and Share
Pay with your US Issued Visa, MC, Disc, AMEX Cards. You do NOT need to use Paypal
Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks.

DiamondBack Says:
"Since 1978, the Diamondback brand name has been synonymous with precision, durability and integrity. Likewise, it should be no surprise to know that these are our core values which inform the design and production of each and every one of our bikes. From the top down, everything we build evolves from these values. Everything we stand for is embedded in who we are. From our deep roots in BMX to our progressive and groundbreaking Knuckle Box Suspension Platform, we build bikes for all people… all riders. From the elite road racer or mountain bike enthusiast, to the dedicated and committed cause or event rider. From kids to adults and everything in between… we build bikes for you. Diamondback is a company unafraid of blazing its own trail. We are Diamondback… DB4L."

"With a sensible amount of suspension both front and rear, these bikes smooth out trail features. Medium-travel translates to max speed and grip as they power through rough patches."

"Smooth and predictable suspension lends confidence on the trail.

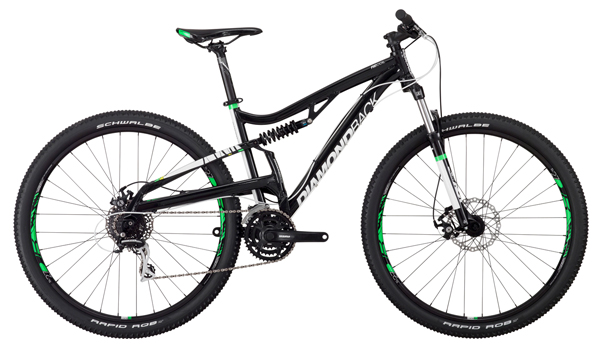

"Full suspension mountain bikes don’t need to be overly complicated and the Recoil shows just how that’s done. The understated single pivot design is equipped with sealed cartridge bearings to deliver smooth, durable performance, and the four inches of suspension travel will take the edge off all but the biggest roots and rocks on the trail. The frame is built using trusted 6061-T6 aluminum alloy, so you know it’s strong, and the formed and butted tubing makes sure to save weight wherever possible. Stack the whole thing atop silky smooth 29er wheels, and you can get out and enjoy the simple life—riding your bike."

Hot Features:
Hand built 4-inch travel 6061 T-6 aluminum alloy full suspension frame is super strong
Optimized single pivot with sealed cartridge bearings for smooth, durable performance
 SR Suntour XCT 100mm suspension fork and Kindshock coil rear shock tackle the terrain
Shimano 8-speed drivetrain with SR Suntour Cranks provides reliable shifting
Powerful Tektro Aires mechanical disc brakes

COMPARE TO: Giant, TREK or Specialized at $1000+ local taxes

Sizing Guide
fits most as follows:
16" - 5'6" to 5'8"
18" - 5'8" to 6'
20" - 6' to 6'3"

This is a guide, please consult the geometry chart as needed. Between sizes? Size down for lower handlebars, more straddle room/short arms/legs. If you size up, you may touch the top tube when you straddle the bike. Size up for long arms/legs/torso.
Sizing is a personal preference, the final choice is up to you
Frame DB Recoil 6061 T-6 Aluminum Trail w/ 4" travel, Optimized Single Pivot, Machine Formed Top Tube, Butted / Formed Down Tube, Sealed Cartridge Bearing Pivot, replaceable hanger
Fork / Rear Shock SR XCT 100mm travel w/external preload adj. / Kindshock Coil 190x51mm w/ oil Damping
Crankset SR Suntour XCC T202, 42/32/22T
Bottom Bracket Sealed Cartridge
Pedals Platform MTB
Front Derailleur Shimano Altus M310 dual pull, top swing, 34.9
Rear Derailleur Shimano Acera M360 8spd
Shifters Shimano Altus M310 8spd Rapidfire
Cassette Shimano HG31 8spd Cassette (11-32t)
Chain KMC 8 Speed
Hubs

Front Hub 32h SL-7 Alloy w/ CNC Disc Mount
Rear Hub 32h SL-7 Alloy Cassette w/ CNC Disc mount
Spokes Black 14g Stainless Steel
Rims DB SL7 29" 32h, Doublewall Aluminum Alloy
Tires Schwalbe Rapid Rob 29X2.25, KevlarGuard
Brakes Tektro Aires Mechanical Disc Brake, Rotors - 180mm Front/160mm Rear
Brake Levers Tektro Alloy w/ reach Adjust
Handlebar DB SL318b, 685mm wide, 15mm Rise, 31.8mm Aluminum Alloy
Stem/ Headset DB AL6061 Ahead, 31.8mm, 7° / Zero Stack Ahead 1 1/8"
Tape/Grip DB4L 135mm Kraton grips
Saddle DB Race saddle
Seat Post DB SL309p Alloy Micro Adjust 30.9mm
Seat Clamp Aluminum with bolt
Sizes see pull down
Colors As Shown

Our low price is $499.95 Compare at $999+
This price INCLUDES Ground Ship UPS to 48 States

Bikes come up to 90 percent assembled. How much Assembly? CLICK HERE for sample assembly instructions and videos
CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
