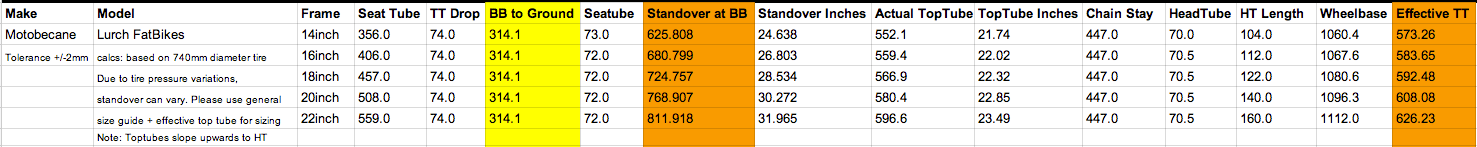

Click For: Specs | Sizing Chart | Click Here For Detailed Gallery Pics of Black Lurch | Geometry Chart
NOTE: pics for illustration purposes. Tires are now Highly Rated Maxxis Minion FatBike Tires. See spec list for expected parts.
IMPORTANT: READ THIS PRIOR TO ORDERING
People love this fatbike- See folks that have a Lurch. Check out the Lurch Lounge on MTBR.com >Click Here<
SRAM GX 2x10 Speed
Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks.
*Order now to lock in your sale price and selection. The price will go up $100 more at any time..
Super wide tires “float” over snow and sand…the fastest bikes you’ll ever ride on mud, bogs, deep sand and snow. As a bonus, they’re great convo makers and super smile-generators
How much does a fat bike weigh?
How do Fat Bikes ride?
How are these Fat Bikes being sold for this Great Price? Other similarly equipped Fat Bikes cost over twice as much.
*If one is between sizes, size down for lower bars more aggressive fit or shorter arms. Size up for higher bars, or longer arms.
Refused / Returned Fat Bikes: For much larger bikes such as Fatbikes the return fee would be $100 which is part of the cost of the return shipment and will be deducted from your refund.
Frame Custom Butted, CrMo FRAMES, W/DISC MOUNT ONLY, TIG WELD, Rear horizontal dropouts with hub keepers, H2O bosses, Tapered Headtube = L: 36/41/46/51/56CM = 104/112/122/140/160mm. DOWN TUBE: 4130 CR-MO W/BEND ON HT SIDE FOR FORK. Now with rear rack braze-ons.*Customers report up to 5" tires fit. Not a guarantee, some tires may not fit Fork 26" FAT BIKE, Tapered Steerer = CR-MO 1-1/8" to 1.5" Taper W/0 THREAD.L: 300mm, BLADE: CR-MO STRAIGHT, Axle:150mm, W/ INT'L STD DISC MOUNT + TriFecta Fork BrazeOns QR Dropouts. NOTE: Frame Fits tapered head tube forks. Crankset RACE FACE RIDE-22x36T, 10 SPD, 22x36T AL C-Ring BLACK Crank 175mm FOR BB-100mm Bottom Bracket RACE FACE BB-100mm BSA Standard English Threaded Pedals n/a Front Derailleur SRAM FD-GX-HIGH DIRECT 2X10 TOP PULL Rear Derailleur SRAM RD-GX 10SPD TYPE 2.1 LONG CAGE BLK Shifters SRAM SL-GX 2X10 TRIGGER BLK Cassette/Freewheel SRAM PG-1030 10-SPEED 11-36 Chain KMC X-10SL STEEL NP/NP+CL-566R LINK Hubs F/HUB(HB) T NOVATEC D201SB-QR ALLOY FRONT DISC HUB 32H, OLD: 9mm x 150mm FOR FAT BIKE, 2 PRECISION BEARINGS, W/QR
R/HUB NOVATEC D202SB-QR-S4S ALLOY REAR DISC HUB W/ STEEL CASSETTE BODY 32H.OL:10x190x200MM CRMO AXLE, 4 PRECISION BEARINGS,2RS
Spokes 14G STEEL STAINLESS W/BRASS NIPPLE Rims Tubeless Compatible SUN-RINGLE Mulefüt SL 80mm, 32H, BLACK ANOD. W/ 32mm CutOuts
*Add your own tubeless kit for lighter weight, enhanced ride quality, virtually flat-free riding. See FAQ page for Tubeless system setup.
Tires/Tubes MAXXIS MINION 26 X 4.80, FBF / FBR 60 tpi Folding Bead Brakes AVID DB BB7 BKA 20I , MECHANICAL DISC BRAKE FOR INT'L STD DISC MOUNT, 180MM ROTOR Front / 160mm Rear Brake Levers AVID FR5 ALLOY BLACK LEVER W/ALLOY Headset FSA NO. 57 , ORBIT 1.5 ZS ,FOR 1-1/8"/1.5" FORK STEM Internal Alloy Cups, 1-1/8" ACB Upper, 1.5" ACB Lower w/Std 15mm top cover (H2051B) ( 28.6x44/55.95x39.8mm) (H:19.8 mm ) Handlebar ( C:31.8mm ), ALLOY 6061 RISE H/BAR ( 9° ) B/CENTER: 31.8mm.R/W:0/700mm. S.B BLK Stem ( C:31.8mm ) ALLOY 6061 Threadless A-HEAD STEM.EXT:(7°)80/90/100/110/120MM FOR 36/41/46/51/56CM ,C/S:31.8x28.6x41mm. Tape/Grip WTB Dual DNA Compounds Saddle WTB VOLT SPORT Seat Post 6061 ALLOY SAND BLAST BLK S/POST W/ALLOY ED BLK HEAD , 27.2 X 400MM Seat Post Clamp ( 29.8 x28.4 ) ALLOY SAND BLK S/CLAMP W/QR Sizes See pull down Colors See Pull Down menus
Our low price saves you Hundreds of $ Compare to... Nothing compares
Ships Signature Req'd for your protection
Bikes come up to 90 percent assembled.
We suggest you take it to your local bike shop for final assembly & safety checks.
