Frame

New Semi-Compact Geometry, High Modulus CarbonFiber Frame with replaceable derailleur hanger and 2xH2O brazeons
HT lengths 47/50/52/54/56/58/60/62/64CM = 115/130/140/150/170/190/210/230/250mm

Fork

700C CARBON ( UD WEAVE ) FORK, STEERER: ALLOY ( 1-1/8" to 1.5" Taper ) CROWN:56mm, ALLOY CROWN AND DROPOUT BONDED CARBON STRAIGHT BLADE, OFFSET:45mm

Headset

Threadless ACB Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ) W/TOP CAP W/15 mm Cone Spacer / Standard 15mm top cover (H2166B) ( 28.6x42/52.1x39.78mm)

Derailleurs

F/DERA SHIMANO, FD-R8000 Ultegra, FRONT DOUBLE/REAR 11-SP BAND TYPE (34.9MM), BLACK, R/DERA SHIMANO RD-R8000 Ultegra, GS 11-SPEED, LOW GEAR 28-32T, BLACK

Shifters

SHIMANO SHIFT/BRAKE LEVER, ULTEGRA ST-R8000, 22-SPEED

Brakes

SHIMANO BR-R8000, ULTEGRA, Brake SHOE: R55C4

Wheelset

DT SWISS P 1800 SPLINE® Black 23 " WHEELSET
RIMS DT SWISS 700C ALLOY BLACK ANOD. SLEEVED, TUBELESS READY (see FAQ tubeless info on set up) RWS tape 21 mm, valve 32 mm ( IN PARTS BOX ) ( 1596g )
SPOKE DT SWISS STRAIGHTPULL DT NEW AERO & DT AERO COMP , BLACK , F/R:20/24PCS S.S. RADIAL / 2 CROSS W/DT ALUMINUM NIPPLES
F/HUB DT SWISS SPLINE ALLOY ROAD BLACK 20H, OL:100MM
R/HUB DT SWISS SPLINE ALLOY ROAD BLACK 24H. W/ 3 PAWL SYSTEM, OL:130MM For SHIMANO 11-SPD

Crank/BB

SHIMANO FC-R8000, ULTEGRA, FOR 22-SPEED, HOLLOWTECH 2, 50-34T, 170/172.5/175mm for 47-50 / 52-54 / 56-58CM / SHIMANO SM-BBR60, (BSA), BEARING, INNER COVER

Cassette/Chain

SHIMANO CS-HG800 11SP, 11-13-15-17-19-21-23-25-27-30-34T/ SHIMANO CN-HG701-11SP

Saddle

RITCHEY COMP STREEM 132 BLACK Synthetic Leather, Nylon + GF Shell, Steel Rail

Seatpost

RITCHEY COMP 2B ALLOY 6061 3-D forged, BB Black, 31.6 x 350MM

Handlebars/Stem

RITCHEY STEM COMP 4AXIS 84/6D (C:31.8) - 28.6 ALLOY(6061), EXT:(-6°) 90/100/110mm FOR 47-50 / 52-54 / 56-58CM, BB BLK / RITCHEY BIOMAX ROAD BAR ALLOY(6061) D.B. BUTTED W/TUNNEL BUILT IN TYPE B/CENTER:31.8mm 400/420/440mm FOR 47-50 / 52-54 / 56-58CM ,D/R:130/82mm, BB BLK

Pedals

WELLGO ALLOY BLK ROAD PEDAL W/9/16" CNC CRMO AXLE

Tires CONTINENTAL Ultra Sport II 700x25C 180TPI FOLDINGBEAD

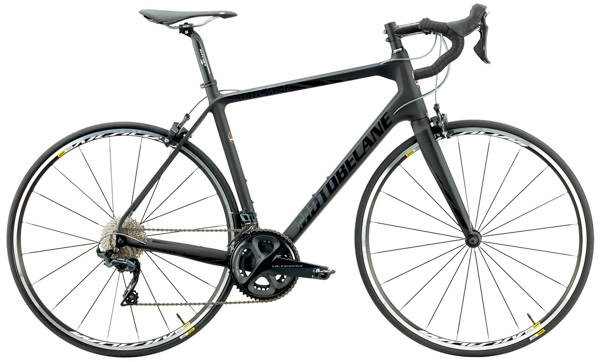

Color (as shown)
Sizes see pull down

Bikes come up to 90 percent assembled. Assembly is easy. An 11 year old customer assembled their own bike. Check out his video: CLICK HERE.How much Assembly? CLICK HERE for sample assembly instructions and videos CLICK HERE for a special price on the full Video DVD/CD and Folding Mini ToolKit
If you don't feel confident working on your bike, we suggest you take it to a local bike shop for final assembly & safety checks.
